60 Frame Air Ram Extractor


Category: Tags: , , , , , , ,

Interested in this product?

  • This field is for validation purposes and should be left unchanged.

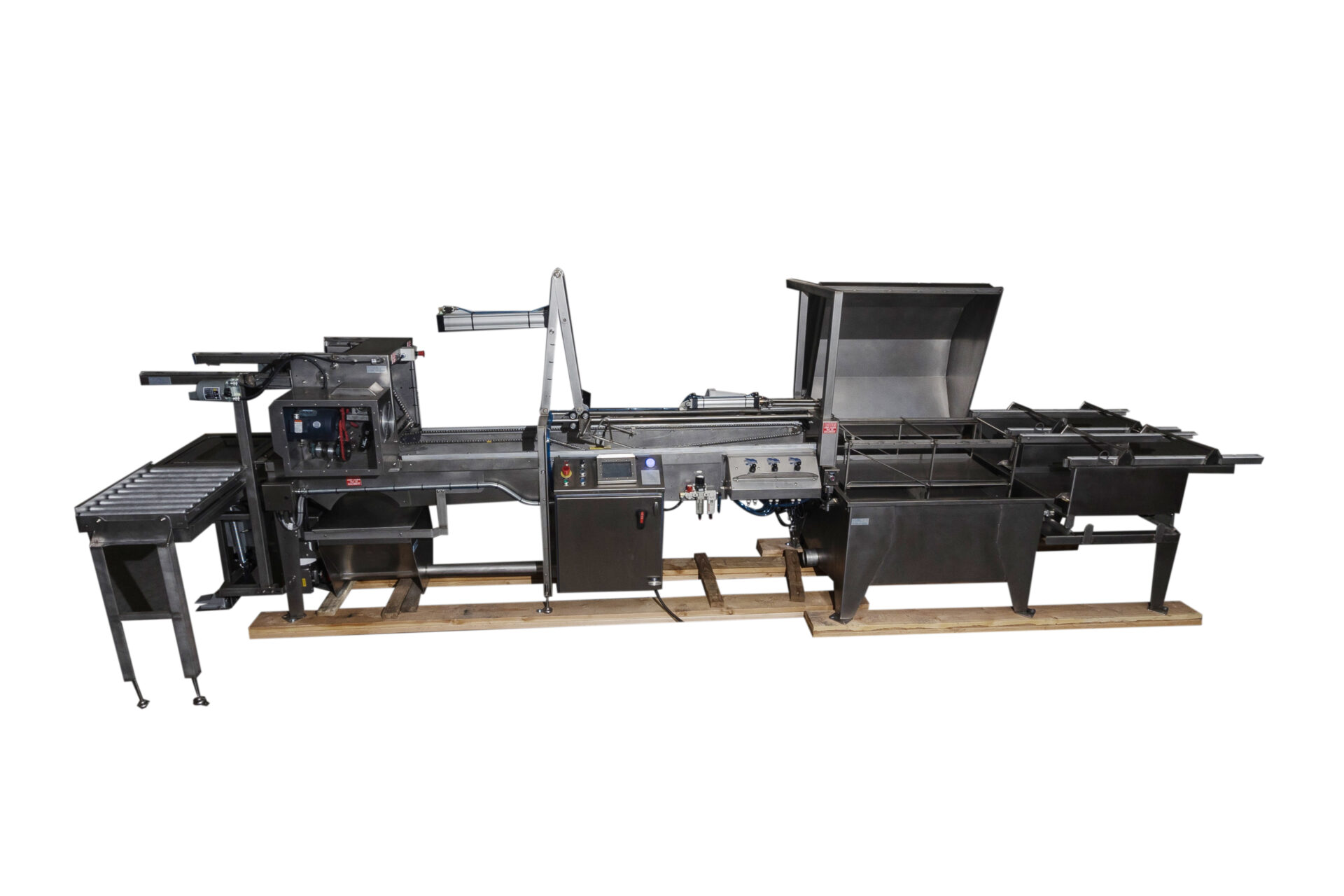

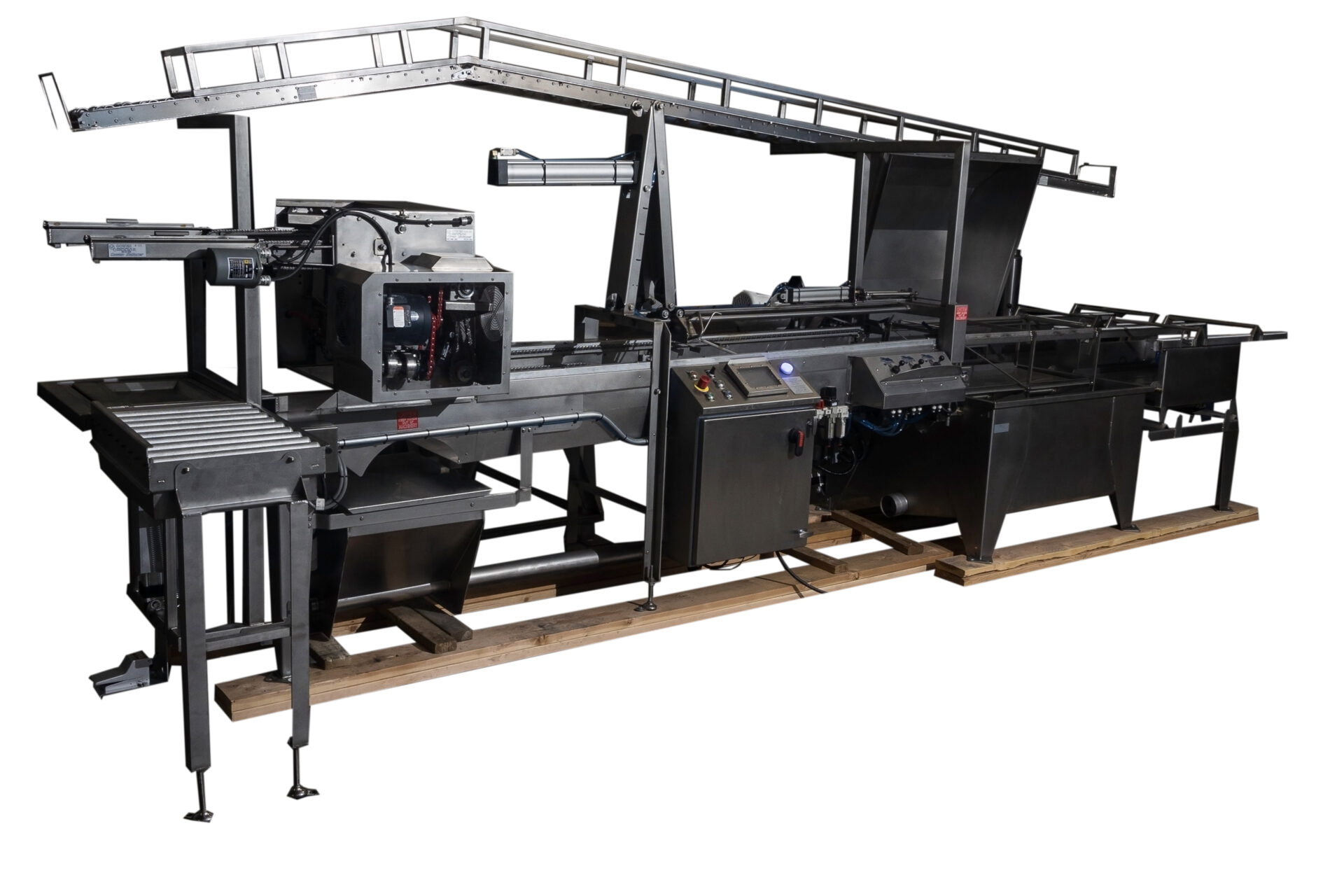

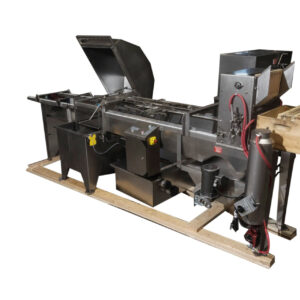

The Cowen 60 Frame Stainless Steel Air Ram Extractor is a two-man operation. Designed for the medium commercial beekeeper, the 60 Frame can extract a minimum of 36 boxes per hour. This makes it possible to extract at least 288 boxes in one eight-hour day.  We have customers that do a lot more than that in a day.

The 60 Frame Stainless Steel Air Ram Extractor features a power loading conveyor, stainless steel reel, automatic self adjusting drive, and a stainless steel tank.

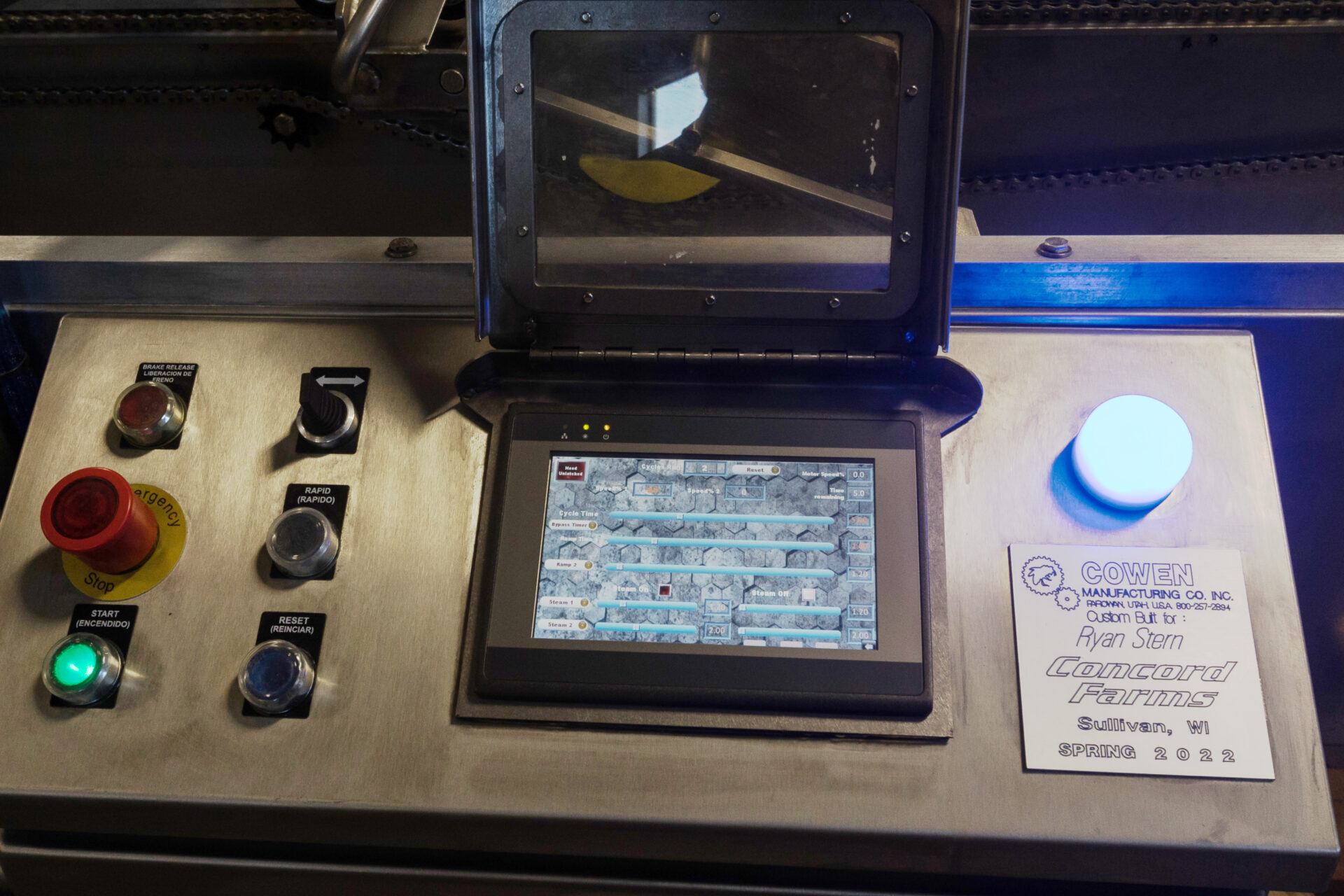

After combs are placed in the Uncapper, they are carried to the extractor by a power conveyor and mechanically loaded into the reel. By pushing 30 full combs into one side of the stainless steel extractor reel, the 30 empty combs are pushed out onto the unloading rack to await re-boxing. The touchscreen is used to set up cycle time, acceleration times and steam injection points during the cycle. The extractor works with the push of a button and acceleration, cycle time and steam injection is automatic, when the cylce completes the machine shuts itself down and an audible alarm alerts the operator that it is time to load once again. While the extractor is running, the operator has adequate time to re-box the empty combs and repeat the uncapping process so that operation is continuous. A normal extracting cycle lasts approximately 5 to 10 minutes.

45″ High
19′ Long
77″ Wide

The power required for the 60 Air Extractor is 60 amp 230 volt single phase.

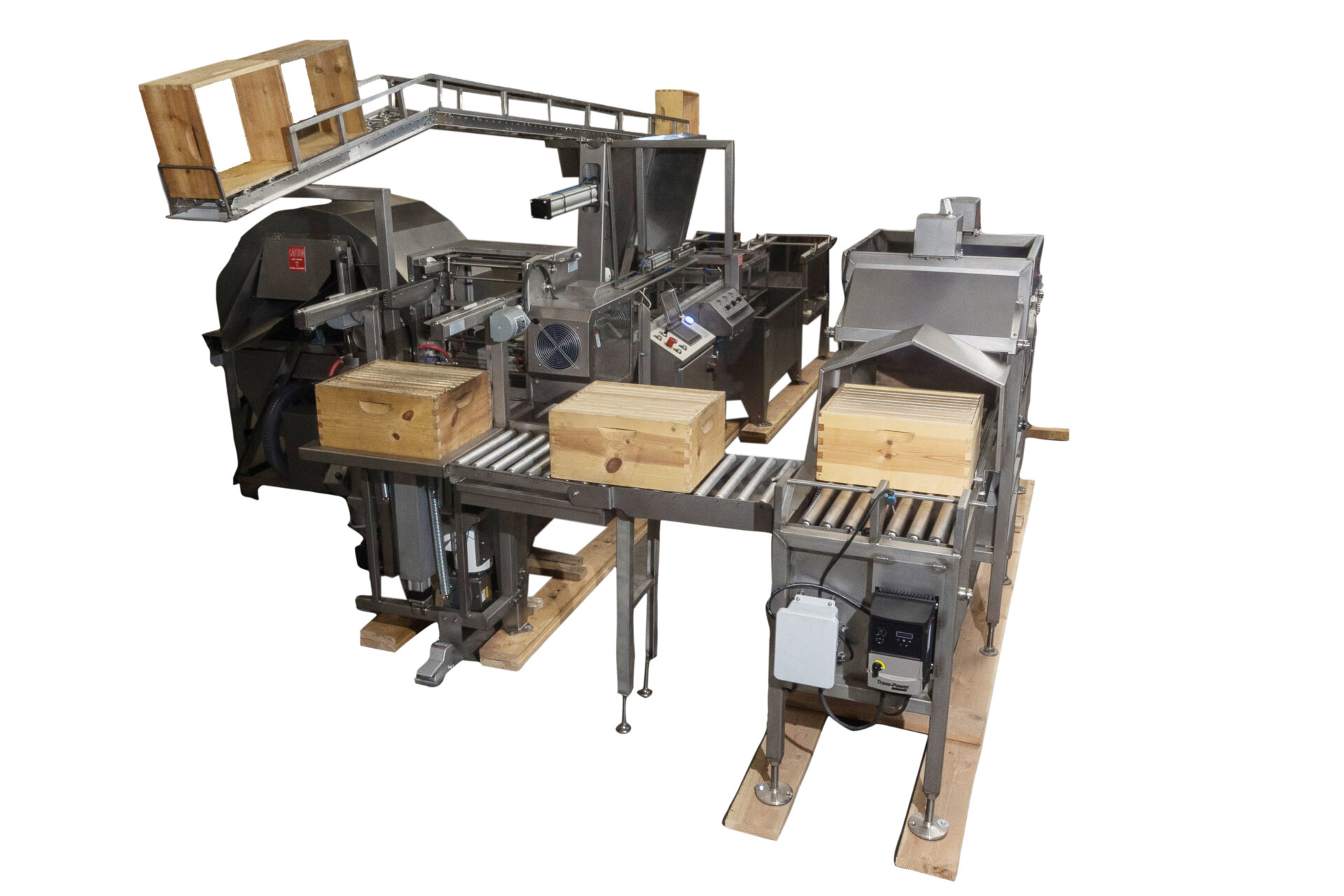

Optional equipment such as Uncappers, Augers, DeBoxers, Sumps, Etc. not included. For an example of a full system click here:

Air-Ram 60 System with Cowen Spinner

Air-Ram 60 System for Spin Float
